High pressure film blowing machine
High-pressure dedicated film blowing machine Applicable raw materials LDPE/LLDPE/MLLDPE is used to produce flat bags, garment packaging bags, industrial packaging films, agricultural films, greenhouse films and other products. Advantages High transparency.
| Model | DB-50-700 type | DB-55-900 type | DB-60-1100 type | DB-65-1300 type |
| Screw diameter | Ф50 | Ф55 | Ф60 | Ф65 |
| Length to diameter ratio | 30:1 | 30:1 | 30:1 | 30:1 |
| Film folding diameter | 600 | 800 | 1000 | 1200 |
| Thickness of one side of the film | 0.015-0.15mm | 0.015-0.15mm | 0.015-0.15mm | 0.015-0.15mm |
| Production output | 30-40 kg/hour | 40-50 kg/hour | 50-60 kg/hour | 60-70 kg/hour |
| Host power | 15 | 18.5 | 22 | 30 |
| Heating power | 11 | 13 | 19 | 21 |
| Dimensions | 4800×2000×3800 | 5200×2300×4000 | 6500×2500×4800 | 6500×28000×5000 |
| machine weight | 1.5T | 2T | 2.3T | 2.6T |
Optional device:
Mike weight (control weight)
Suction machine (automatic suction)
Corona treatment machine (surface electrostatic treatment)
Rotating die head (better product uniformity)
Pneumatic shaft (more convenient for loading and unloading)
Color masterbatch machine (add color masterbatch more evenly)
Double winding (used to produce sheet film)

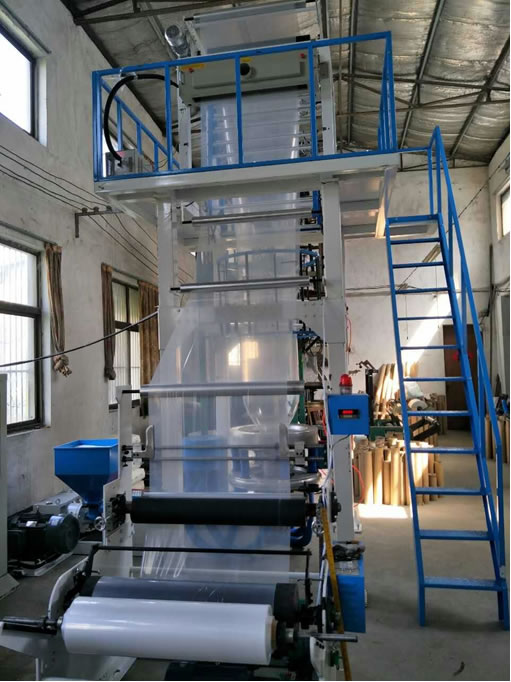

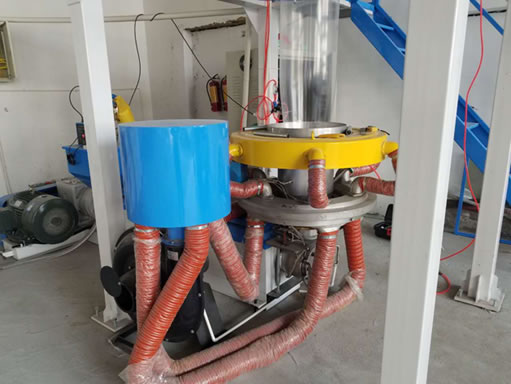

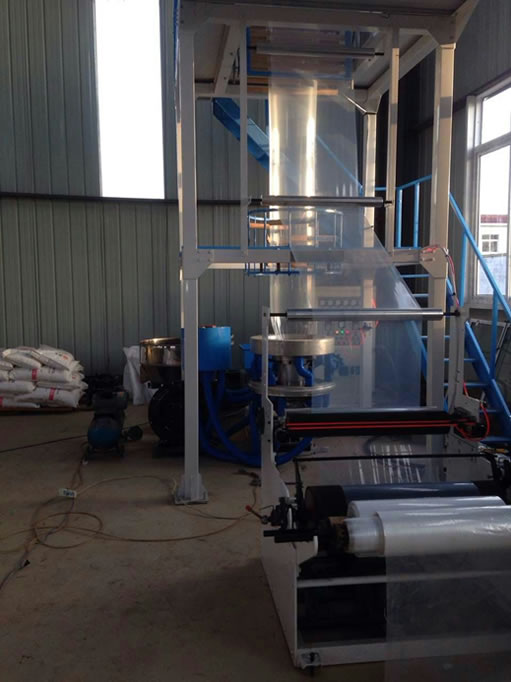

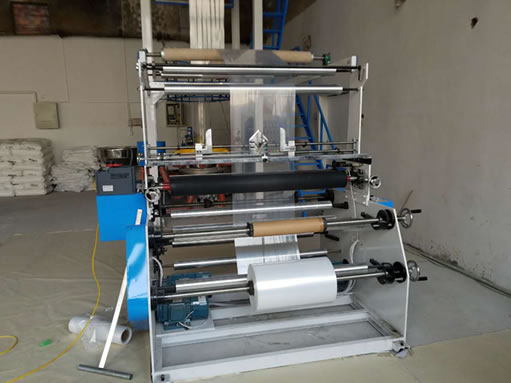

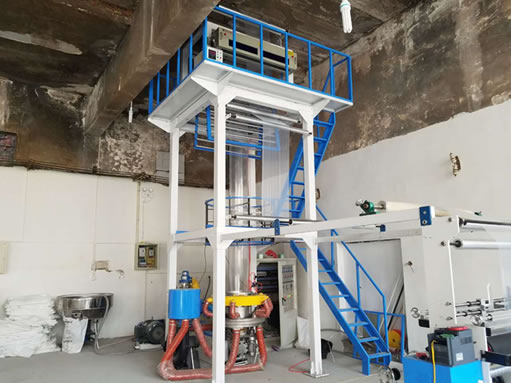

Real shots in the customer's factory
